Center Bezel

REMOVAL - 200C

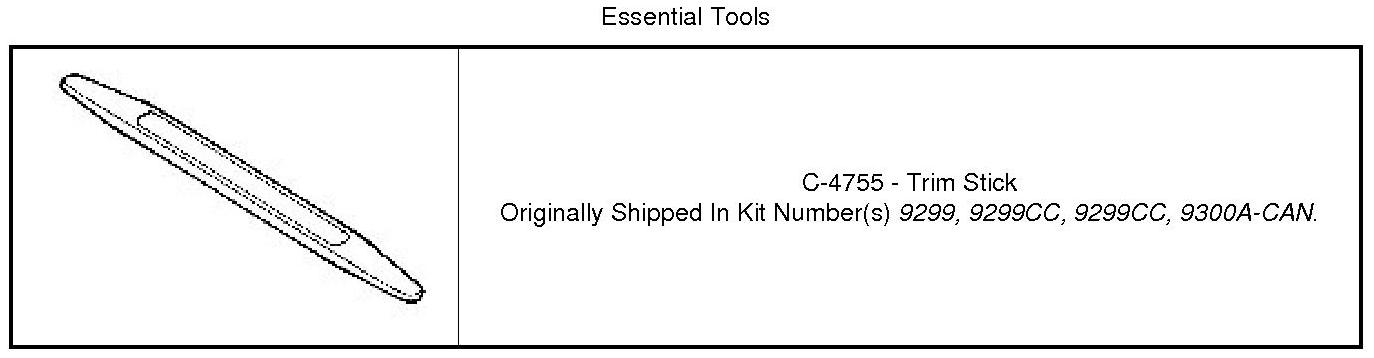

Special Tools:










1. Disconnect the negative battery cable.
2. Using trim stick or equivalent, disengage the retaining clips.
3. Disconnect the switch bank and clock harness connectors.
4. Remove the center trim bezel (1).
