Rear Crossbrace Bracket

REMOVAL

1. Raise and support the vehicle. (Refer to Vehicle Quick Reference/Hoisting - Standard Procedure)







2. Remove the mounting screws (1) securing the rear crossbrace/reinforcement brackets (2).
3. Remove the brackets.

INSTALLATION

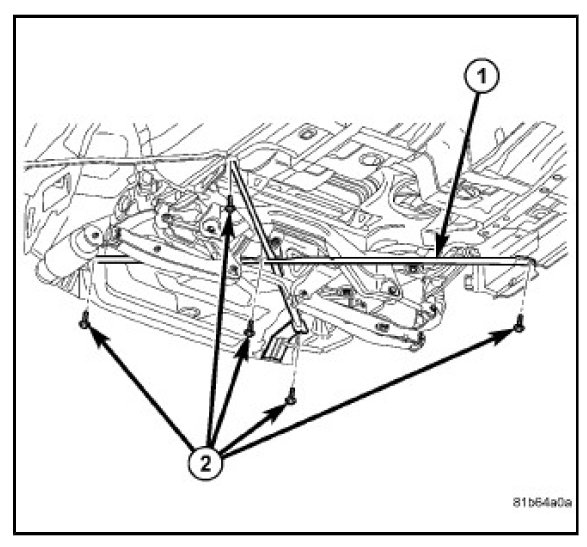

1. Position the rear crossbrace/reinforcement brackets (1) through the rear crossmember.
2. Install the mounting screws (2) and tighten to 50 N.m (37 ft. lbs.).
3. Lower the vehicle.
