Installation

3.5L

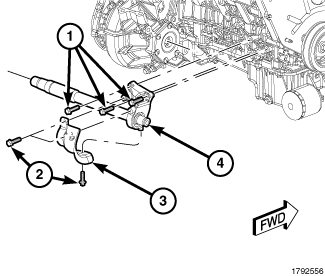

1. Install the intermediate shaft (4).
2. Install the intermediate shaft bolts (1) and tighten to 38 Nm (28 ft. lb.).
3. Install the heat shield (3).
4. Install the heat shield bolts (2) and tighten to 10 Nm (7 ft. lb).
5. Install the right half shaft Half Shaft - Installation.
