Rear

INSTALLATION

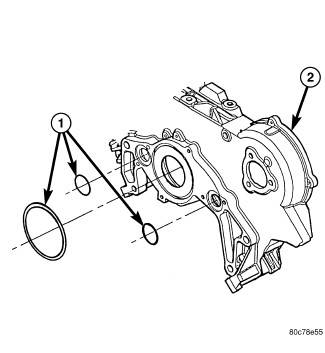

1. Clean rear timing belt cover O-ring sealing surfaces and grooves. Lubricate new O-rings with Mopar(R) Dielectric Grease or equivalent to facilitate assembly.
2. Position NEW O-rings on cover.

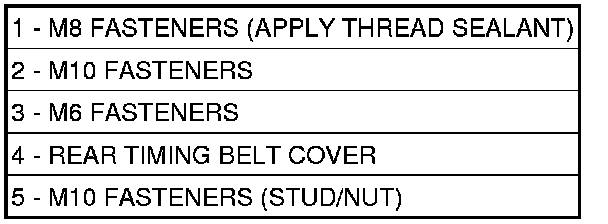

3. Install rear timing belt cover. Tighten bolts to the following specified torque:
- M10-54 Nm (40 ft. lbs.)
- M8-28 Nm (20 ft. lbs.)
- M6-12 Nm (105 in. lbs.)

4. Install camshaft sprockets and timing belt Timing Belt & Sprockets - Installation.
