Tensioner Pulley Assembly

TENSIONER PULLEY ASSEMBLY

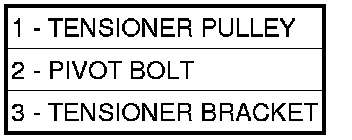

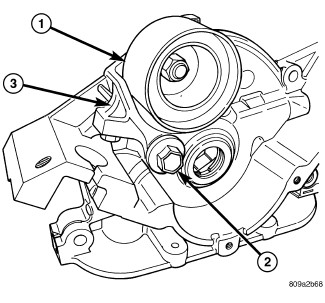

NOTE: The tensioner pulley, bracket, and pivot bolt is serviced as an assembly.

1. Inspect pulley for free movement. Replace if pulley is loose, seized, or rough turning.
2. Inspect pulley bearing and seal. Replace if damaged.
3. Inspect pivot bolt for free movement in assembly housing. Replace assembly if seized or excessive looseness.
