Front Crankshaft Oil Seal - Installation

INSTALLATION

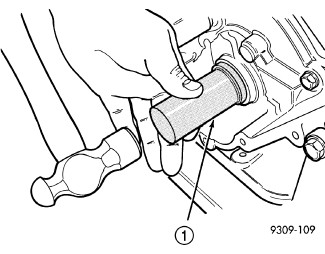

1. Install crankshaft seal using Special Tool 6342 (1).
2. Install the dowel pin into the crankshaft to 1.2 mm (0.047 in.) protrusion.
3. Install the crankshaft sprocket. Timing Belt & Sprockets - Installation.
