Crankshaft Sprocket - Installation






CRANKSHAFT SPROCKET










CAUTION: To ensure proper installation depth of crankshaft sprocket, Sprocket Installer 6641 must be used.

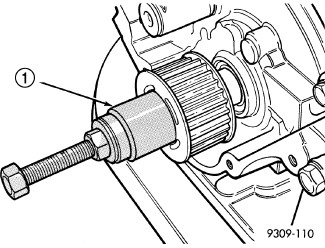

1. Install crankshaft sprocket using Sprocket Installer 6641 and Forcing Screw C-4685-C1.
2. Install timing belt Timing Belt & Sprockets - Installation.
