Home >> Chrysler >> 2010 >> Sebring Convertible V6-2.7L >> Repair and Diagnosis >> Transmission and Drivetrain >> Flex Plate >> Service and Repair >> Flexplate - Removal

Flexplate - Removal

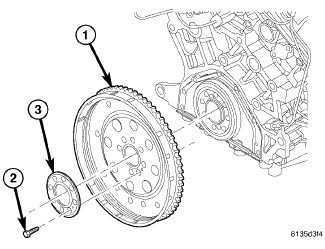

REMOVAL





1. Remove transmission.
2. Remove flex plate attaching bolts (2).
3. Remove backing plate (3) and flex plate (1).
