Valve Body - Disassembly

DISASSEMBLY





1. Unplug the electrical connectors (1, 2) at the valve body.





2. Remove the bolts (1) at the transfer plate (2) and remove the transfer plate.





3. Turn valve body over and remove the solenoid module (1) from the valve body (2).





4. Remove the bolts (1) at the line pressure sensor (2).
5. Remove the line pressure sensor from the valve body.





6. Remove the bolt (1) at the pressure control solenoid (2).





7. Remove the bolts (1) at the clamping plate (2).





8. Remove the clamping plate (1).





9. Remove the valve body cover (1).





10. Remove the valve body inner gasket and plate (1) from the valve body..






NOTE: The valve body contains some check balls that are pressed into a tapered bore (1). These check balls are not removable.

NOTE: Locations of check balls are very important. Please note the location of these check balls for proper installation.

11. Remove the check balls (2) if equipped.

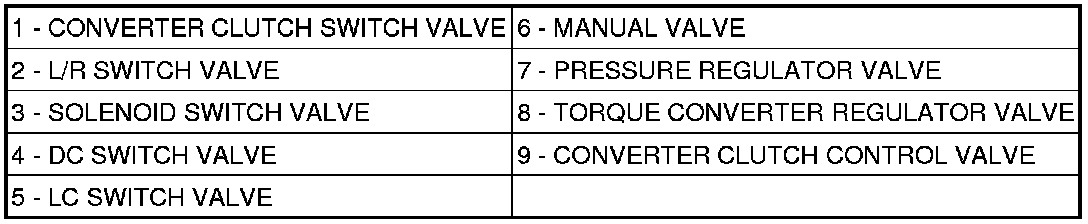

NOTE: Use exploded view for disassembly.

NOTE: Tag all valve/spring assemblies for reassembly identification.

12. Remove valves from valve body.
