Valve Body - Assembly

ASSEMBLY

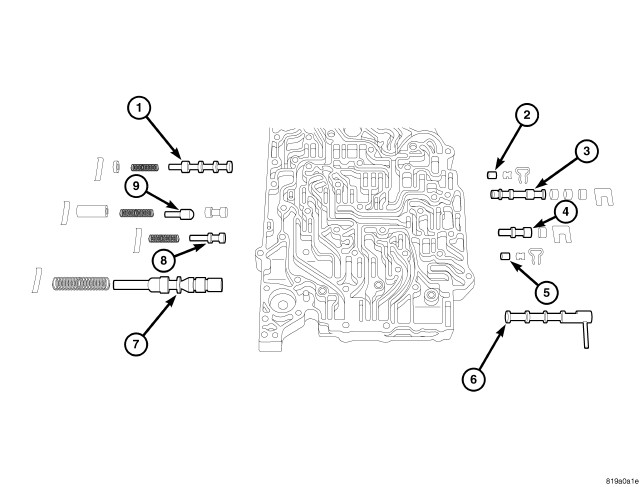

NOTE: Use exploded view for assembly.

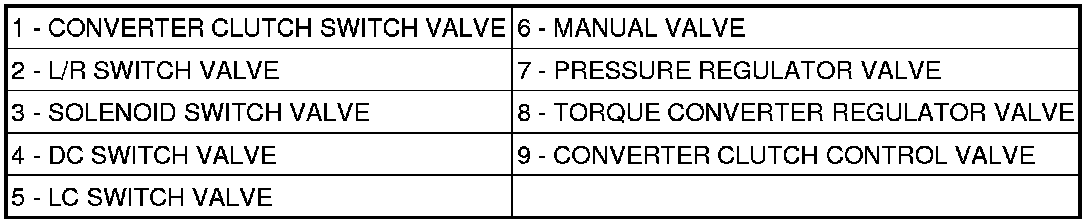

1. Install the valves into valve body.






NOTE: The valve body contains some check balls that are pressed into a tapered bore (1). These check balls are not removable

NOTE: Locations of check balls are very important. Please compare from disassembly the location of these check balls.

2. Install the check balls (2) if equipped.

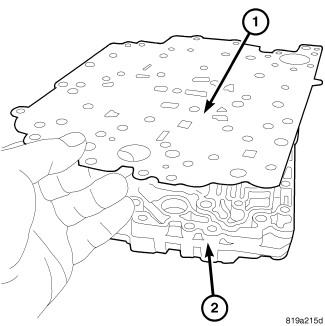

3. Install the inner separator plate (1).

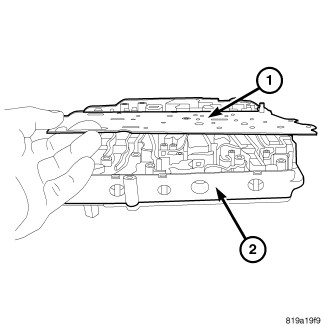

4. Install the outer separator plate (1).





5. Install the transfer plate (1).

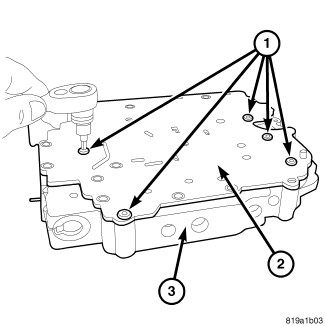

6. Install the bolts (1) at the transfer plate (2) and tighten to 6 Nm (50 in. lbs.).





7. Install the pressure control solenoid on to the valve body.

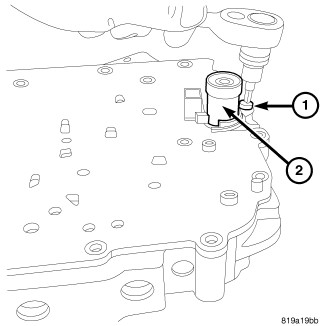

8. Install the bolt (1) at the pressure control solenoid (2) and tighten to 6 Nm (50 in. lbs.).





9. Install the pressure control sensor onto the valve body.

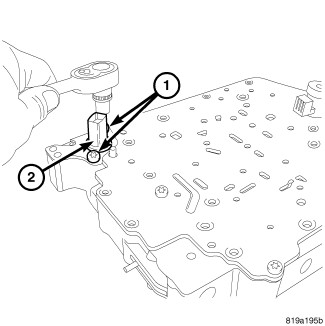

10. Install the bolts (1) to the pressure control sensor and tighten to 6 Nm (50 in. lbs.).

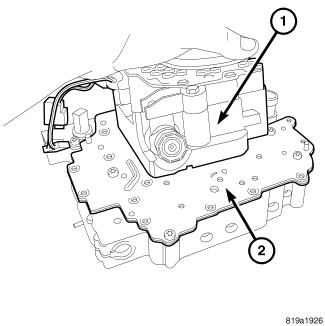

11. Install the solenoid pack (1) onto the valve body (2).





12. Turn valve body over and install the clamp plate (2) onto the valve body.
13. Install the clamp plate bolts and tighten to 6 Nm (50 in. lbs.).





14. Plug in the electrical connectors pressure control solenoid and pressure control sensors.
