Transmission Oil Pump - Assembly






ASSEMBLY

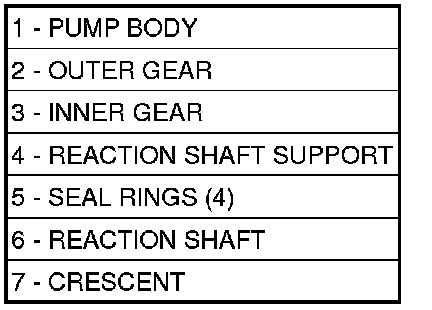

1. Assemble oil pump.

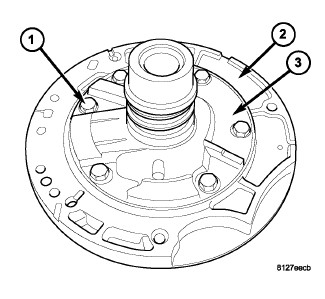

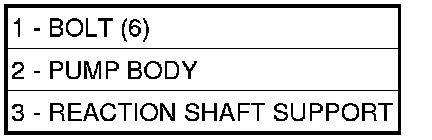

2. Install and tighten reaction shaft support-to-oil pump housing bolts (1) to 28 Nm (20 ft. lbs.).
