Procedures
Removal
WARNING: Disable the airbag system before attempting any steering wheel, steering column, or instrument panel component diagnosis or service. Disconnect and isolate the negative battery (ground) cable, then wait two minutes for the airbag system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the airbag system. Failure to take the proper precautions could result in accidental airbag deployment and possible serious or fatal injury.
WARNING: Always make sure the A/C-heater system is turned off and that the ignition switch is in the OFF position prior to servicing the particulate air filter. Never place fingers or other objects into the filter opening of the HVAC housing. Failure to follow this warning may result in serious injury.
NOTE: LHD model shown in illustrations. RHD model similar.
NOTE: Illustration shown with instrument panel removed for clarity.
1. Remove the glove box bin.

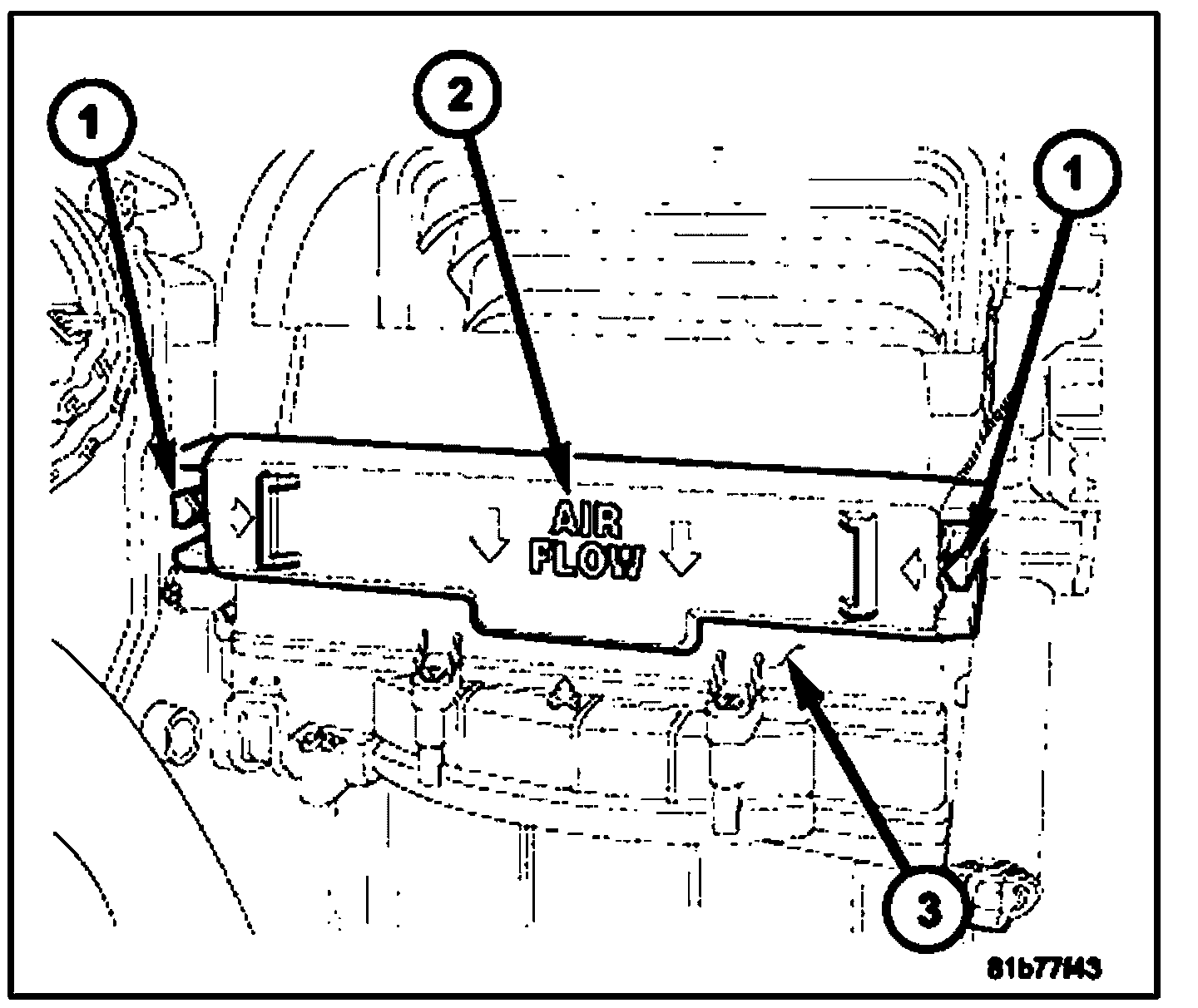

2. Disengage the two retaining tabs (1) that secure the particulate air filter cover (2) to the passenger side of the HVAC housing (3) and remove the cover.

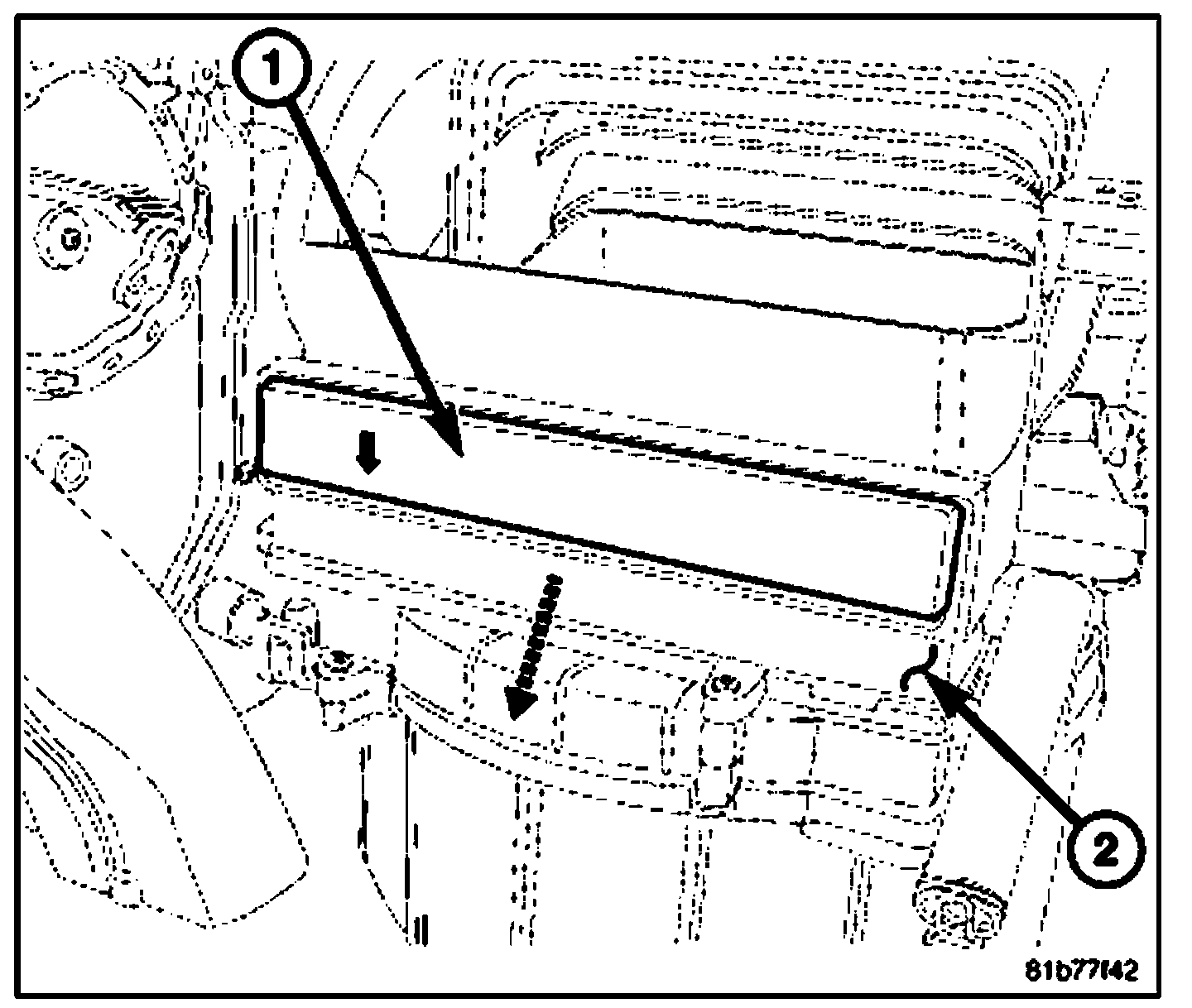

3. Remove the particulate air filter (1) from the HVAC housing (2) by pulling the filter element straight out of the housing.
Installation
NOTE: The particulate air filter is labeled with an arrow to indicate air flow direction through the filter. Make sure to properly install the particulate air filter. Failure to properly install the filter will result in the need to replace the filter sooner than required by design.
NOTE: LHD model shown in illustrations. RHD model similar.

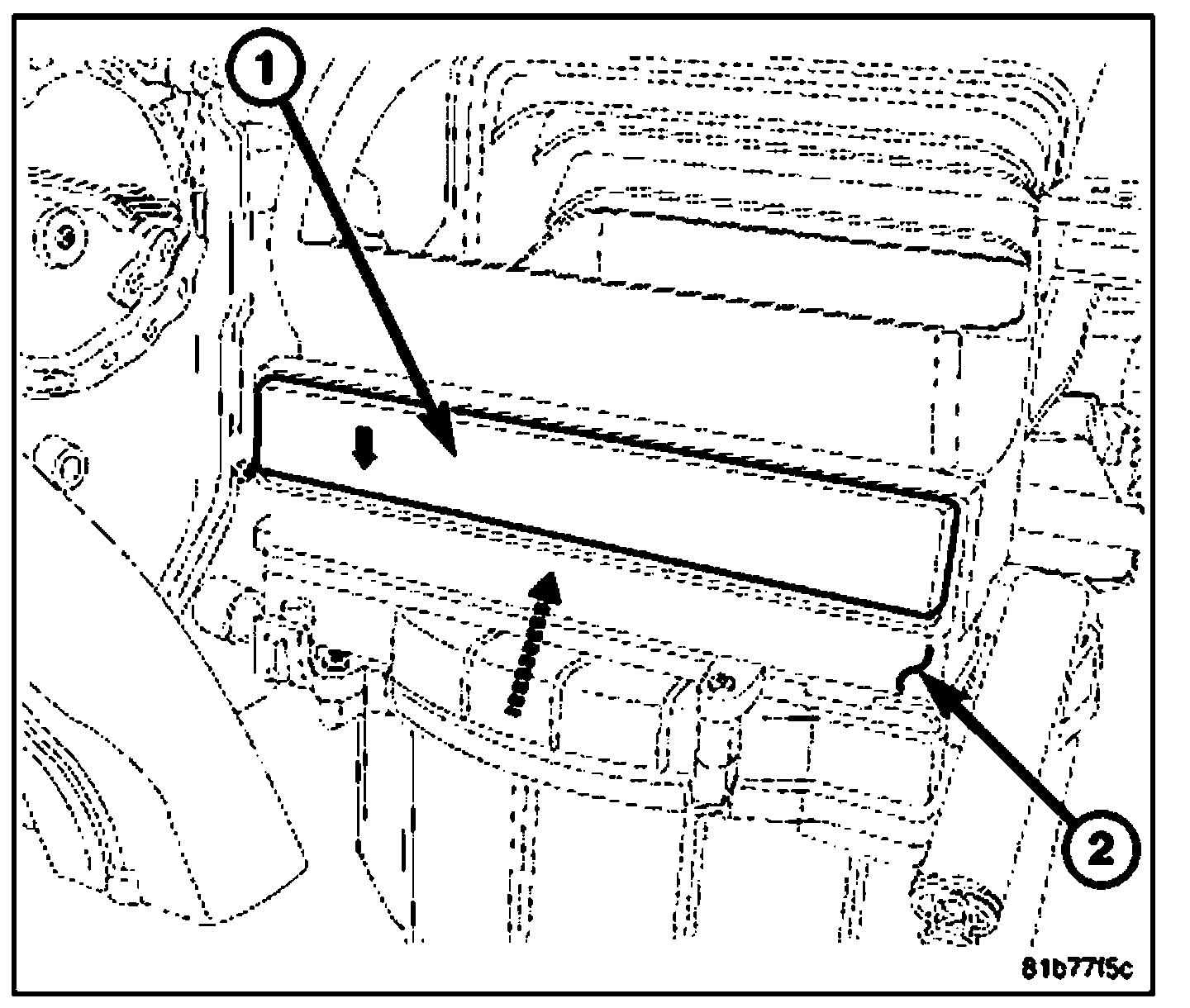

1. Install the particulate air filter (1) into the opening in the HVAC housing (2). Insert the particulate air filter directly into the housing with the arrow on the filter pointing to the floor.
2. Position the particulate air filter cover (2) to the HVAC housing (3) and engage the two retaining tabs (1) that secure the cover to the housing. Make sure the retaining tabs are fully engaged.
3. Install the glove box bin.
