Exhaust Manifold - Removal

REMOVAL

FRONT





1. Disconnect and isolate the negative battery cable.
2. Remove the engine cover.

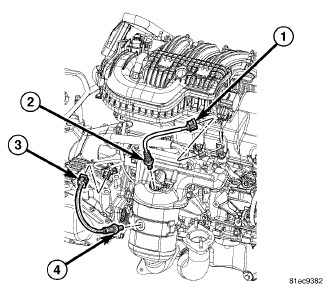

3. Disconnect and remove oxygen sensors (2) and (4) Oxygen Sensor - Removal.





4. Remove the oil indicator tube and dipstick.
5. Remove the upper maniverter heat shield (2).





6. Remove the splash shield (2).





7. Remove the front maniverter-to-crossunder fasteners (1) and (2).





8. Remove front exhaust maniverter attaching bolts (1) and remove the front maniverter (2).

REAR










1. Disconnect and isolate the negative battery cable.
2. Remove the engine cover.
3. Remove the splash shield (2).

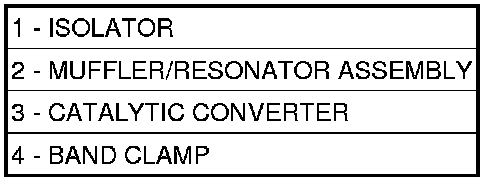

MUFFLER AND RESONATOR ASSEMBLY





4. Remove the exhaust system (2) Exhaust System - Removal





5. Remove the crossunder pipe (3) Exhaust Cross under Pipe to Resonator - Removal





6. Remove the lower EGR tube (1) Exhaust Gas Recirculation (EGR) Tube - Removal.

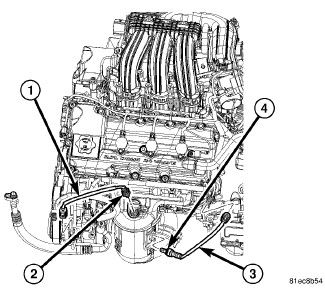

7. Remove the oxygen sensors (2) and (4) Oxygen Sensor - Removal.





8. Remove the rear maniverter heat shield (3).





9. Remove the rear maniverter fasteners (1) and the rear maniverter (2).
