Valve: Testing and Inspection

INSPECTION

VALVES










1. Clean and inspect valves thoroughly. Replace burned, warped and cracked valves.

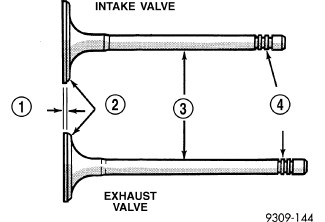

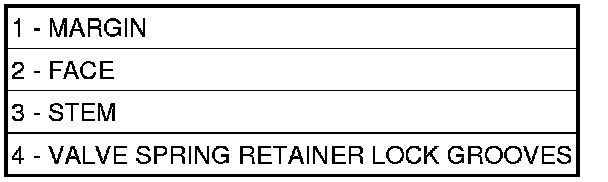

2. Measure valve stems for wear (3). For valve specifications, Engine Specifications.

NOTE: Valve stems are chrome plated and should not be polished.


VALVE GUIDES





1. Remove carbon and varnish deposits from inside of valve guides with a reliable guide cleaner.
2. Measure valve stem-to-guide clearance as follows:
3. Install valve into cylinder head so it is 15 mm (0.590 inch.) off the valve seat. A small piece of hose may be used to hold valve in place.

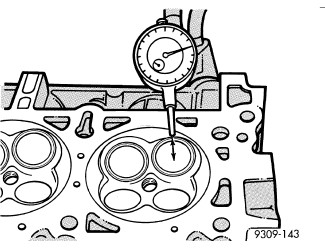

4. Attach dial indicator Tool C-3339A to cylinder head and set it at right angle of valve stem being measured.
5. Move valve to and from the indicator. For clearances specifications, Engine Specifications.

NOTE: Replace cylinder head if stem-to-guide clearance exceeds specifications, or if guide is loose in cylinder head.
