In Vehicle

IN VEHICLE

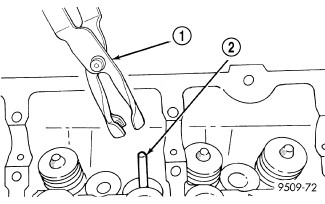

1. The valve stem seal/valve spring seat should be pushed firmly and squarely over the valve guide using the valve stem as guide. Do Not Force seal against top of guide. When installing the valve retainer locks, compress the spring only enough to install locks
2. Follow the same procedure on the remaining cylinders using the firing sequence 1-2-3-4-5-6. Make sure piston is at TDC on the cylinder that the valve spring is to be removed.
3. Remove spark plug adapter tool and Special Tool MD 998772A.
4. Install rocker arm(s).










5. Install camshafts Camshaft - Installation , timing chain Timing Chain & Sprockets - Installation , and timing chain cover Engine Timing Cover(s) - Installation.

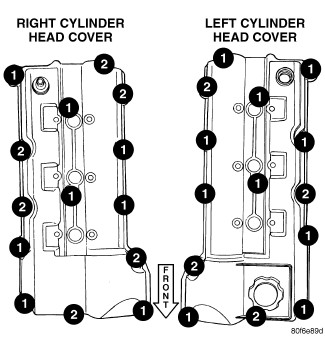

6. Install cylinder head covers Cylinder Head Cover(s) - Installation.
7. Install upper intake manifold Intake Manifold - Installation.

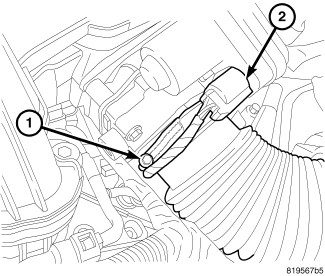

8. Install air cleaner housing and inlet hose (1).
9. Connect negative cable.
