Right

REMOVAL

1. Disconnect negative battery cable.









2. Disconnect electrical connectors from ignition coils and capacitor.

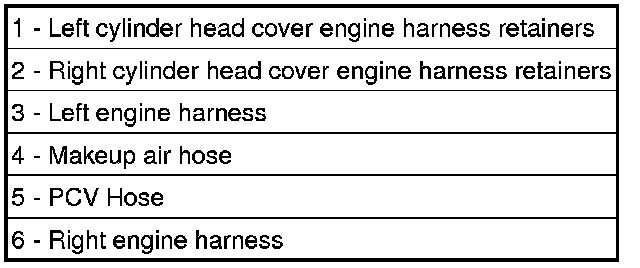

3. Disconnect right engine harness retaining clips (2) from cylinder head cover studs. Position the engine harness (6) aside.
4. Disconnect the PCV hose (5) from the upper intake manifold.

5. Remove upper intake manifold Intake Manifold - Removal.









6. Remove ground strap from cylinder head cover stud.
7. Disconnect electrical harness retaining clips from cylinder head cover studs. Reposition electrical harness.
8. Remove fastener attaching ignition coil capacitor.
9. Remove ignition coils Ignition Coil - Removal.
10. Loosen all cylinder head cover fasteners.

NOTE: Cylinder head cover attaching bolts are captured to the cover.

CAUTION: Make certain the double ended studs in the center of the cylinder head cover are loose before attempting to remove cover.

11. Remove cylinder head cover.
