Left

REMOVAL

1. Disconnect negative battery cable.
2. Disconnect electrical connectors from ignition coils and capacitor. Reposition electrical harness.
3. Remove ground strap from cylinder head cover stud.

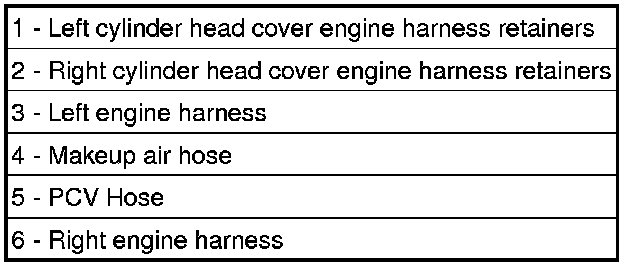

4. Disconnect engine harness retaining clips (1) from cylinder head cover studs. Position the engine harness (3) aside.
5. Remove fastener attaching ignition coil capacitor.
6. Remove ignition coils Ignition Coil - Removal











7. Loosen all left cylinder head cover fasteners.










8. Disconnect the makeup air hose (4).









NOTE: Cylinder head cover attaching bolts are captured to the cover.

CAUTION: Make certain the double ended studs in the center of the cylinder head cover are loose before attempting to remove cover.

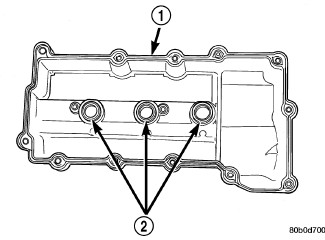

9. Remove the left cylinder head cover (1).
