Heater Pad - Removal

REMOVAL






NOTE: The factory installed heating element can be removed from foam cushion by carefully peeling the element off along the adhesive lines.

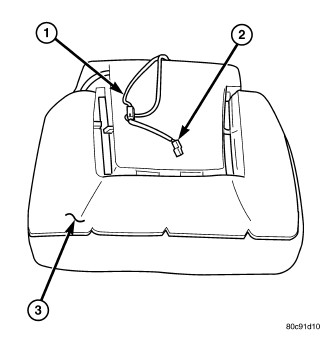

NOTE: Heated seat cushion shown, heated seat back similar.

1. Disconnect and isolate the battery negative cable.
2. Remove the appropriate seat cushion trim cover, Seat Cushion Cover - Removal or seat back trim cover, Seat Back Cover - Removal.
3. Disconnect the inoperative heated seat cushion or seat back element electrical connectors (2).
4. Peel the heater element off the foam pad, being careful not to remove excessive foam in the process.
