Front

INSTALLATION





1. Carefully install the seat back cover to the foam, install any hog rings as required.
2. Install the seat back foam and cover to the seat frame.
3. Install the headrest guides.

4. Install the airbag to the seat cover bag and install the side airbag fasteners. Torque fasteners to 8 N-m (6 ft. lbs.).
5. Install the shoulder bracket and bracket mounting fasteners to the seat back.
6. Feed the seat belt through and install the rear entry handle cover and cable to the seat back.
7. Install the rear entry handle cover.




8. Connect the rear entry release cable to the release latch (2) and the mounting bracket (1).

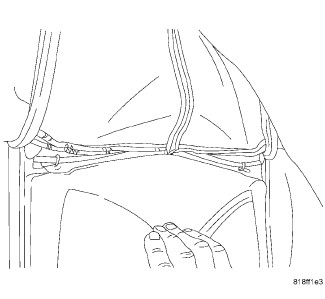

9. Engage the seat back cover J-clip (2).
10. Engage the seat cushion J-clip (1).
11. Install the retractor to the mounting bracket and install the seat belt retractor mounting bolt (3).





12. Install airbag harness to the seat cushion pan.
13. Install the lower inner shield (2) and fasteners (1).





14. Engage seat back cover (1) J-clips.
15. Install the lower outer shield (2).
16. Install the seat side shields. Seat Cushion Side Shields - Installation.
17. Install the seat to the vehicle. Seat - Installation.
