All Passenger Doors Unlock Control Circuit Performance

ALL PASSENGER DOORS UNLOCK CONTROL CIRCUIT PERFORMANCE

For a complete wiring diagram, refer to the Wiring Information .

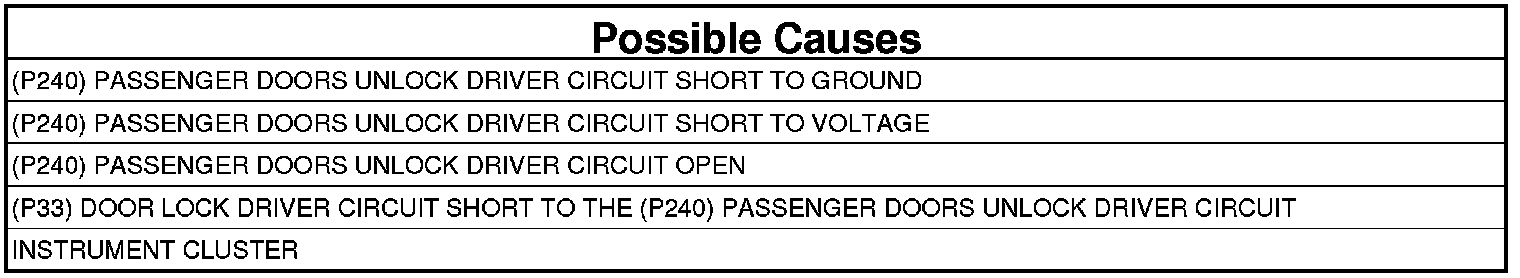

1. (P240) PASSENGER DOORS UNLOCK DRIVER CIRCUIT SHORT TO GROUND

1. Turn the ignition off.
2. Disconnect the Instrument Cluster C1 connector.

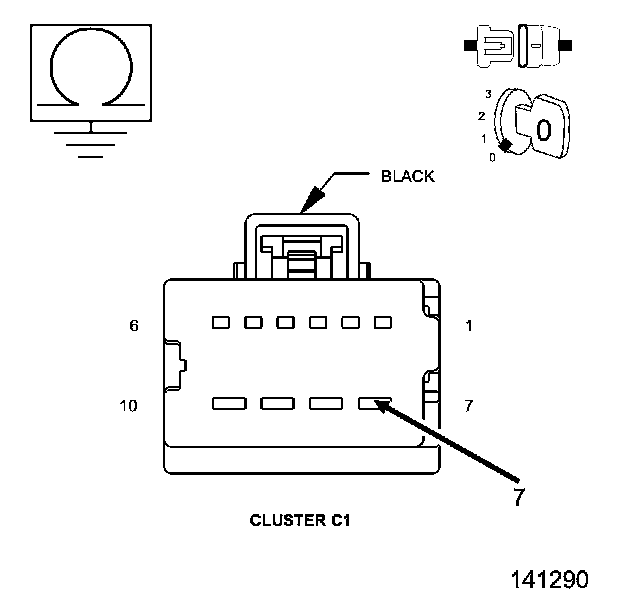

3. Measure the resistance between ground and the (P240) Passenger Doors Unlock Driver circuit in the Cluster C1 connector.

Is the resistance below 1,000 ohms?

Yes

- Repair the (P240) Passenger Doors Unlock Driver circuit for a short to ground.
- Perform the BODY VERIFICATION TEST. Body Verification Test.

No

- Go To 2

2. (P240) PASSENGER DOORS UNLOCK DRIVER CIRCUIT SHORTED TO BATTERY

1. Turn the ignition on.

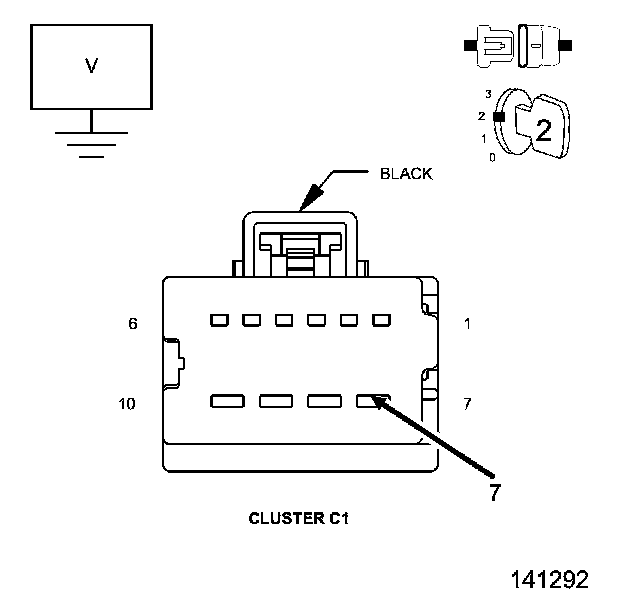

2. Measure the voltage between ground and the (P240) Passenger Doors Unlock Driver circuit in the Cluster C1 connector.

Is there any voltage present?

Yes

- Repair the (P240) Passenger Doors Unlock Driver circuit for a short to voltage.
- Perform the BODY VERIFICATION TEST. Body Verification Test.

No

- Go To 3

3. (P240) PASSENGER DOORS UNLOCK DRIVER CIRCUIT OPEN

1. Turn the ignition off.
2. Measure the resistance between the (P33) Door Lock Driver circuit and the (P240) Passenger Doors Unlock Driver circuit in the Cluster C1 connector.

Is the resistance above 4.5 ohms?

Yes

- Repair the (P33) Door Lock Driver or the (P240) Passenger Doors Unlock Driver circuit for an open.
- Perform the BODY VERIFICATION TEST. Body Verification Test.

No

- Go To 4

4. (P33) DOOR LOCK DRIVER SHORTED TO THE (P240) PASSENGER DOORS UNLOCK DRIVER CIRCUIT

1. Measure the resistance between the (P33) Door Lock Driver circuit and the (P238) Driver Door Unlock Driver circuit in the Cluster C1 connector.

Is the resistance below 2.0 ohms?

Yes

- Repair the (P33) Door Lock Driver for a short to the (P240) Passenger Doors Unlock Driver circuit.
- Perform the BODY VERIFICATION TEST. Body Verification Test.

No

- Replace the Instrument Cluster.
- Perform the BODY VERIFICATION TEST. Body Verification Test.
