Retractable Hard Top - Front Panel

FRONT PANEL





1. Open top to vertical position, Convertible Top - Description.
2. Using a trim stick or equivalent, gently remove both push pins (2) in the bottom of the right and left center rail trim (1).
3. Gently pry off both left and right center rail trim.

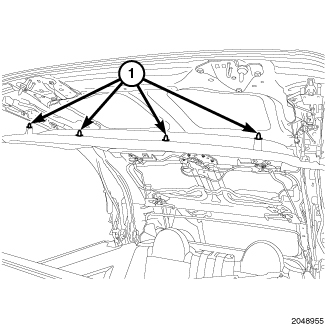

4. Using a door trim panel tool or equivalent, gently pry off the front push pin fasteners and then the rear fasteners and remove front panel headliner.
5. Remove any push pins that remain in the front panel.
6. Remove the headliner from the vehicle.
