P0632

P0632-ODOMETER NOT PROGRAMMED IN PCM



- When Monitored:
Ignition on.

- Set Condition:
The vehicle mileage is not programed into the PCM. One Trip Fault. Three good trips to turn off the MIL.





Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding.Pre-Diagnostic Troubleshooting Procedure

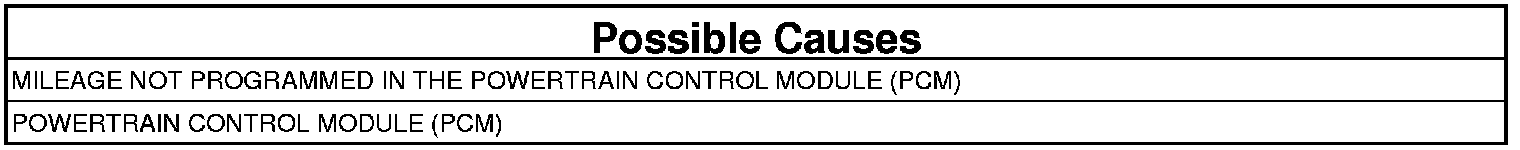

MILEAGE NOT PROGRAMMED IN THE POWERTRAIN CONTROL MODULE (PCM)
1. Turn the ignition on.
2. With a scan tool, Clear DTCs.
3. Using the scan tool, program the vehicle mileage into the Powertrain Control Module (PCM).
4. Start the engine and allow it to reach normal operating temperature.
5. With a scan tool, select View DTCs.

Is the DTC Active at this time?

Yes

- Replace and program the Powertrain Control Module (PCM).
- Perform the PCM Verification Test. PCM Verification Test

No

- Test complete.
- Perform the PCM Verification Test. PCM Verification Test
