62TE

P0602-CONTROL MODULE PROGRAMMING ERROR/NOT PROGRAMMED



Theory of Operation

The controller is programmed during manufacturing with generic software to facilitate testing. This software does not have the proper calibrations to control a transmission in a vehicle. The check for generic software is made at power-up. If generic software is found, the MIL will light immediately and the MIL will stay on even if the fault is cleared, until the proper software is installed. Note: Transmission will be placed in limp-in mode.

- When Monitored:
Check for generic software is made at power-up.

- Set Condition:
If generic software is found, the MIL will light immediately. This DTC is designed to signal the technician that the controller still has generic software installed.





Always perform the 62TE Pre-Diagnostic Troubleshooting procedure before proceeding.Pre-Diagnostic Troubleshooting Procedure

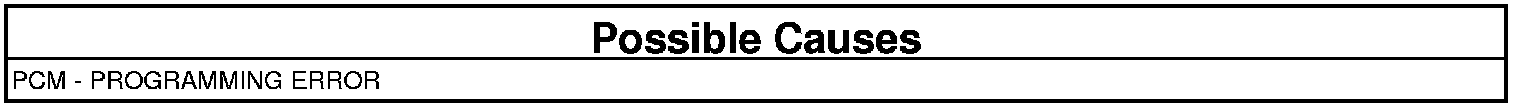

CONTROL MODULE PROGRAMMING ERROR

NOTE: Controller is programmed with generic software and will not allow the correct vehicle Powertrain management.

1. Record the controller part number.
2. Update the controller with the correct software.

Verify that the controller updated successfully.

Test Complete

- Perform 62TE TRANSMISSION VERIFICATION TEST 62TE Transmission Verification Test
