P0513

P0513-INVALID SKIM KEY



- When Monitored:
With the ignition on.

- Set Condition:
The Powertrain Control Module (PCM) detects an invalid ignition key. One Trip Fault.





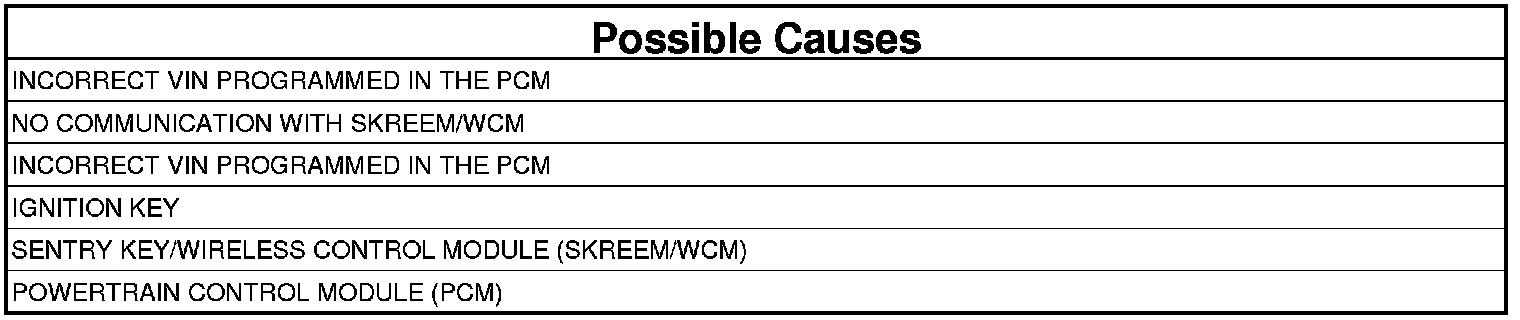

Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. Pre-Diagnostic Troubleshooting Procedure.

1. ACTIVE DTC

NOTE: An external Radio-Frequency Identification (RFID) key (and/or pass/radio key), such as one used to gain access to a 24 hour gym, can cause this DTC to set and create a no start condition. Inspect the customer's key chain for any type of RFID key. If one is not found, question the customer to see if a spare key chain has this RFID key on it or if it was removed from the original key chain before the vehicle was released for service. If a RFID key is present, remove the ignition key from the vehicle and remove the RFID key from the key chain. For GPEC equipped vehicles, disconnect the battery and wait a minimum of five minutes, reconnect and attempt to start the vehicle. For NGC equipped vehicles, turn the ignition on a minimum for one hour, and then attempt to start the vehicle. If the vehicle does not start, continue with the diagnostic test.

1. Attempt to start the engine.

WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands near the pulleys, belts or fan. Do not wear loose clothing. Failure to follow these instructions may result in possible serious or fatal injury.

2. With a scan tool, select View DTCs.

Is the status Active for this DTC?

Yes

- Go To 2

No

- Go To 7

2. NO COMMUNICATION WITH SKREEM/WCM

NOTE: For vehicle communication problems, use the scan tool to refer to the Network Review Screen. The screen depicts a high level view of the vehicle network. Fault and problem areas appear in red. Selecting any of the network components allows access to the source of the problem.

1. With the scan tool, attempt to communicate with the SKREEM/WCM.

Can the scan tool communicate with the SKREEM/WCM?

Yes

- Go To 3

No

- No Response From WCM (Wireless Control Module) Perform the No Responses from WCM diagnostic procedure.

3. SKREEM/WCM TROUBLE CODES SET
1. With the scan tool, check for SKREEM/WCM DTCs.

Are any DTCs present in the WCM?

Yes

- Testing and Inspection Perform the appropriate diagnostic procedure.

No

- Go To 4

4. VIN PROGRAMMED INTO PCM
1. With the scan tool, display the VIN that is programmed in the PCM.

Has the correct VIN been programmed into the PCM?

Yes

- Go To 5

No

- Program the correct VIN into the PCM and retest.
- Perform the PCM Verification Test. PCM Verification Test

5. SENTRY KEY/WIRELESS CONTROL MODULE (SKREEM/WCM)
1. Turn the ignition off.
2. Replace and program the SKREEM/WCM.
3. Turn the ignition on.
4. With the scan tool, erase all SKREEM/WCM and PCM DTCs.
5. Attempt to start the engine.
6. With a scan tool, select View DTCs.

Is the status Active for this DTC?

Yes

- Go To 6

No

- Test complete.

6. POWERTRAIN CONTROL MODULE (PCM)
1. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the SKREEM/WCM and the PCM.
2. Look for any chafed, pierced, pinched, or partially broken wires.
3. Look for broken, bent, pushed out or corroded terminals.
4. Perform any Technical Service Bulletins that may apply.

Were any problems found?

Yes

- Repair as necessary.
- Perform the PCM Verification Test. PCM Verification Test.

No

- Replace and program the Powertrain Control Module (PCM).
- Perform the PCM Verification Test. PCM Verification Test.

7. IGNITION KEY

NOTE: This DTC could have been set if the SKREEM/WCM harness connector was disconnected, or if the SKREEM/WCM was replaced recently.

NOTE: All of the ignition keys for this vehicle must be tested to verify proper operation.

NOTE: If this DTC does not reset, it may have been an actual theft attempt.

1. Turn the ignition on.
2. Verify that the correct VIN is programmed into the PCM and SKREEM/WCM.
3. Turn the ignition off.
4. Using each vehicle key, turn the ignition on and start the engine.
5. With a scan tool, View DTCs for each key.

Is the status Active for this DTC?

Yes

- Replace the ignition key.
- Perform the PCM Verification Test. PCM Verification Test.

No

- Test Complete.
