Passenger Window Not Calibrated/Lost Calibration
PASSENGER WINDOW NOT CALIBRATED/LOST CALIBRATION - JS27 ONLY

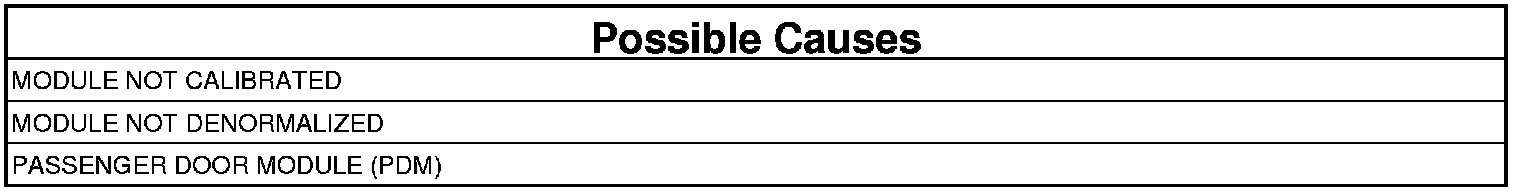

For a complete wiring diagram, refer to the Wiring Information .
NOTE: Anytime a window or window regulator is replaced, this procedure must be used. This condition may also happen when the battery or the door module connector is disconnected.
1. TEST FOR ANY DIAGNOSTIC TROUBLE CODES (DTCs) PRESENT
1. Turn the ignition on.
2. With the scan tool, record and erase DTCs.
3. Sit in the driver seat and close both doors.
4. Operate the Passenger Window up and down several times.
5. Wait 30 seconds.
6. With the scan tool, read DTCs.
Does the scan tool display any Power Window DTCs?
No
- Go To 2
Yes
- Perform the appropriate diagnostic procedure. Testing and Inspection.
2. WINDOW MUST DROP
NOTE: The convertible top and both doors door must be completely closed when starting this step.
1. Move the window part way down.
2. Using the Power Top Switch, raise all windows to the full up position and continue to hold the top switch for an additional two seconds.
3. Using the passenger window switch, lower the window to the full down position and continue to hold the switch for an additional two seconds.
4. Raise the window to the full up position.
5. Open the passenger door while observing the window,
Did the window lower approximately 1/4 inch when the door was opened?
No
- Go To 4
Yes
- Go To 3
3. WINDOW MUST RISE
1. Close the door and observe the window.
Did the window rise to the full up position when the door was closed?
No
- Go To 4
Yes
- Test complete.
- Perform the BODY VERIFICATION TEST. Body Verification Test.
4. DENORMALIZE ROUTINE
1. With the scan tool in "Miscellaneous Functions", perform the "Denormalize Window Command".
2. Ensure the passenger door is closed.
3. Sit in the driver seat and lower the passenger window part way down.
4. Run the window to the full up position and continue to hold the switch for an additional two seconds.
5. Run the window to the full down position and continue to hold the switch for an additional two seconds.
6. Raise the window to the full up position.
7. Open the door and then close the door while observing the window,
Did the window lower approximately 1/4 inch when the door was opened and rise to the full up position when the door was closed?
No
- Replace the Passenger Door Module.
- Perform the BODY VERIFICATION TEST Body Verification Test.
Yes
- Test complete.
- Perform the BODY VERIFICATION TEST Body Verification Test.
