Flexplate - Installation

INSTALLATION

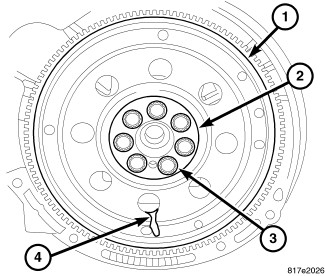

1. Install flex plate (1).
2. Install washer (2).
3. Install new flex plate bolts (3) and tighten in a criss-cross pattern to 29 Nm (22 ft. lbs.) plus 51° rotation.
4. Install transaxle Installation.
