Shift Cable - Installation

INSTALLATION

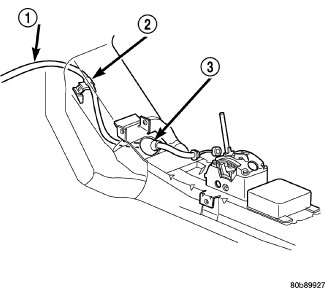

1. Install cable assembly into floor pan tunnel hole and secure grommet (3). If necessary, use a synthetic based lubricant to aid in grommet installation.
2. Position cable into retainer clip (2) and tighten clip to secure cable. Route cable (1) up towards transaxle shift lever.
3. Lower vehicle.

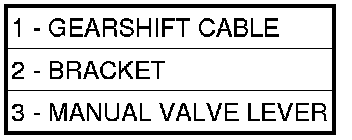

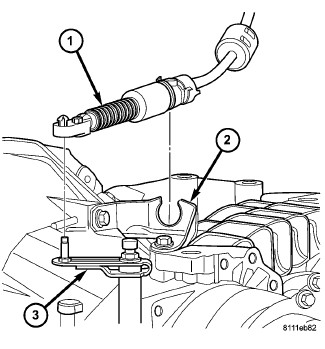

4. Install cable (1) to bracket (2).
5. Install cable to transaxle shift lever (3).

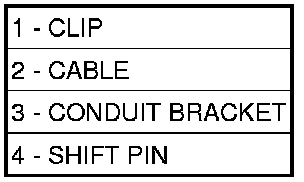

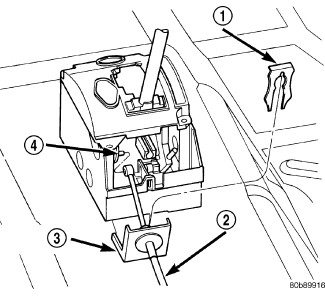

6. Connect cable (2) to shifter conduit bracket (3) and shift pin (4). Install cable retaining clip (1).










7. Verify transaxle shift lever and floor shifter lever are in the PARK position.
8. Tighten cable adjuster nut to 23 Nm (200 in. lbs.).

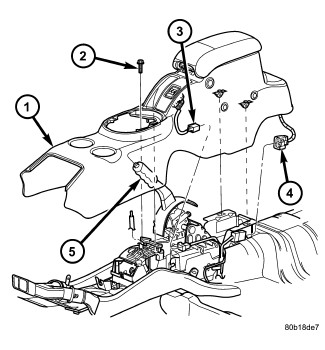

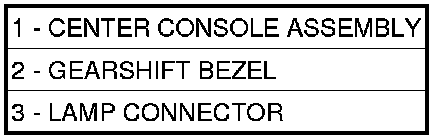

9. Install center console assembly (1).










10. Install gearshift bezel (2).

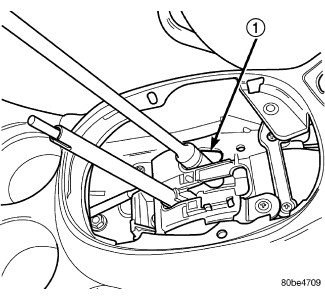

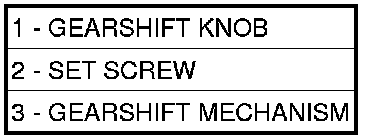

11. Install gearshift knob (1) and tighten set screw (2) to 2 Nm (20 in.lbs.).

12. Verify proper cable adjustment. Engine starter should only engage in PARK and NEUTRAL gear shifter positions. If adjustment is required, Adjustments.
