Transmission Oil Pump - Assembly






ASSEMBLY

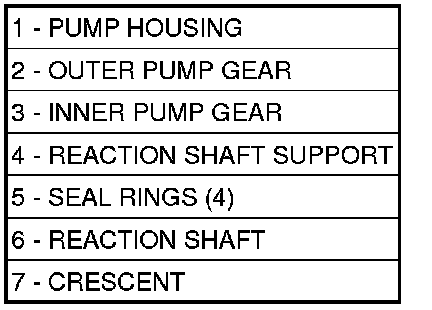

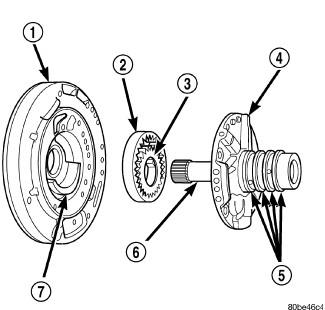

1. Assemble oil pump as shown
2. Install and torque reaction shaft support-to-oil pump housing bolts to 28 Nm (250 in. lbs.) torque.
