Oil Pump Seal - Removal
REMOVAL
1.
Remove transaxle from vehicle
Removal
.
2.

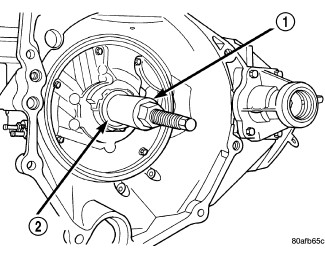

Using Seal Puller C-3981B (1), remove oil pump seal (2).
