Steering Column Control Module - Installation

INSTALLATION

NOTE: If SCCM is already assembled and needs to be installed, bypass ASSEMBLY and proceed with SCCM 1.

ASSEMBLY

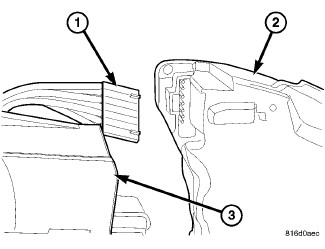

1. Connect the right stalk electrical connector.





2. Slide the right stalk into the groove and install the one retaining screw.





3. Connect the left stalk switch electrical connector.





4. Install the left stalk switch retaining screw.

SCCM

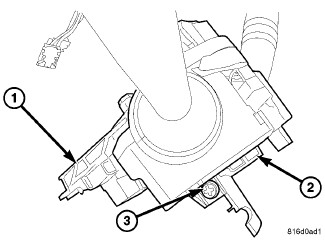

1. Position the SCCM (3) over the steering column shaft (2).
2. Install the three screws (1).





3. Connect the electrical connectors (2) to the instrument panel harness, ensure wiring is properly routed. Then check that the connectors, locking tabs are properly engaged.
4. Install steering column shrouds Steering Column Shroud - Installation. Be sure all wires are inside of shrouds.
5. Install steering wheel ensuring the flats on hub align with the clockspring Installation. Pull the airbag leads through the larger slot. Ensure leads do not get pinched under the steering wheel.

NOTE: There is a small wire harness in the steering wheel and it contains the horn circuits and speed control circuits.

6. Connect the speed control and horn wire connector into the clockspring.
7. Pull the grenade pin out of the clockspring.
8. Install the driver airbag, Driver Air Bag - Installation

WARNING: Do not connect the negative battery cable at this time. Perform the Air Bag System Test prior to connecting the negative battery cable Component Tests and General Diagnostics . Failure to follow this warning may result in accidental air bag deployment and possible serious or fatal injury.
