Power Steering Pump Pulley - Removal

REMOVAL

1. Remove power steering pump from engine. Power Steering Pump - Removal

CAUTION: Do not hammer on power steering pump pulley or shaft to remove power steering pump pulley. Damage to pulley and power steering pump will occur.

CAUTION: It is very important to use Puller 9962, to remove pulley from power steering pump shaft. Use of other pullers can damage or break pulley and pump shaft.

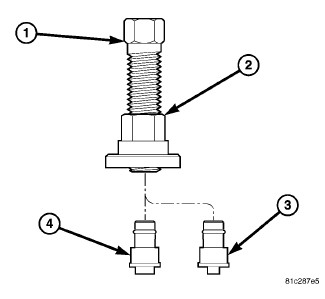

2. Coat Screw-Drive (1) with lubricant and thread into Puller Body (2).

NOTE: Two Buttons come with Puller kit (9962-3 and 9962-4). Be sure to use Button that best fits end of pump shaft to avoid damage to Button or pump shaft.

3. Insert Button 9962-4 (4), into end of Screw-Drive. Be sure not to misplace ball bearing that resides behind Button.

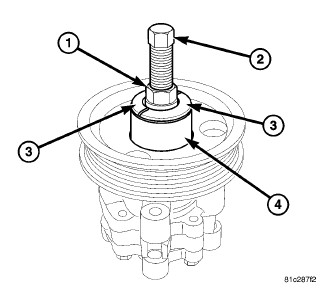

4. Assemble Puller 9962, over end of pump shaft and pulley hub.
a. Place Button on end of Screw-Drive against pump shaft.
b. Assemble Collets 9962-2 (3), surrounding Puller Body (1) and pulley hub flange, then slide the Collet Sleeve over the Collets.
c. Hand tighten Screw-Drive (2) taking up any slack in Puller.
5. Hold Puller Body stationary while turning Screw-Drive until pulley is removed from power steering pump shaft.

NOTE: Inspect pulley. Replace if pulley is bent, cracked, or loose.
