Ignition Switch - Installation

INSTALLATION

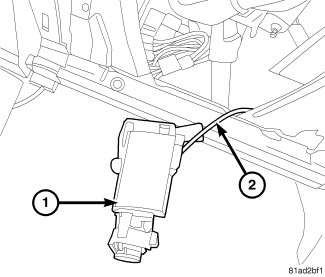

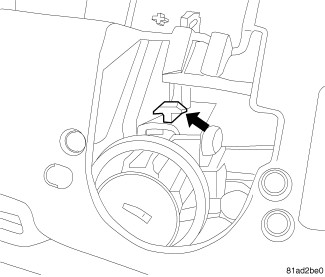

1. Install shift interlock cable to ignition switch, Shift Interlock Cable - Installation.

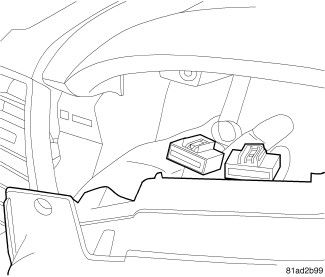

2. Push ignition switch up into connect electrical connectors.

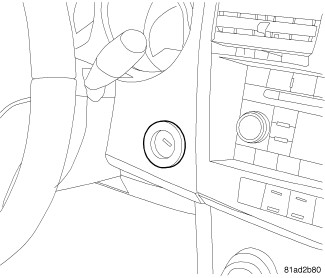

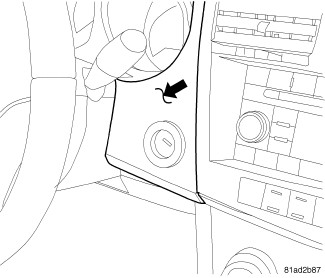

3. Install location t on ignition switch into slot on instrument panel.
4. Pull ignition switch into place.





5. Make sure that location pins are in place.

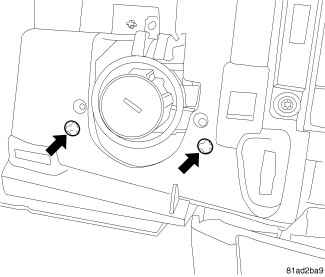

6. Install two front mounting screws and tighten.

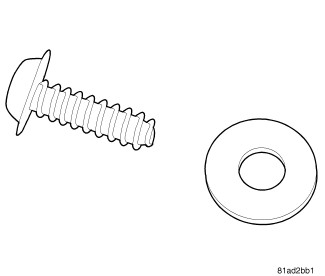

7. Rear mounting screw and washer.

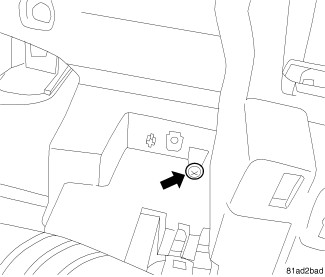

8. Install rear mounting screw and washer and tighten.

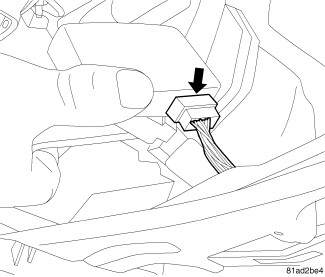

9. Connect two electrical connectors to the back of the instrument cluster

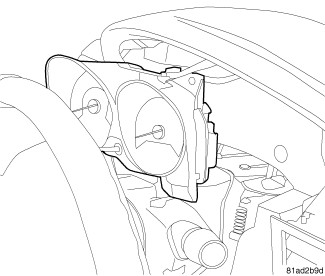

10. Relocate instrument cluster and install, Instrument Cluster - Installation.





11. Install instrument cluster bezel, Instrument Cluster Bezel - Installation.

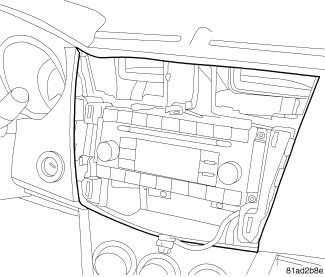

12. Install radio bezel, Instrument Panel Bezel - Installation.





13. Connect negative battery cable.
14. Adjust shift interlock if necessary, Adjustments.
