Generator - Installation

2.0L/2.4L





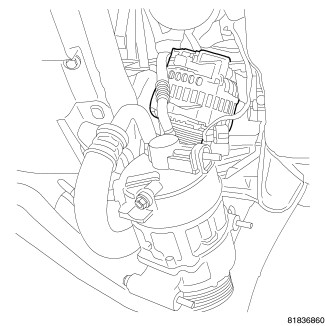

1. Move the A/C compressor to the side to install the generator.





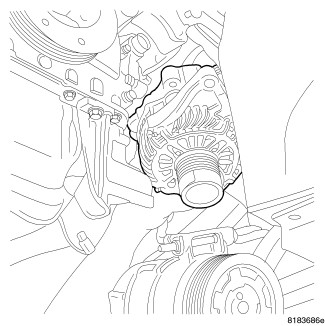

2. Rotate the generator and set it in place.

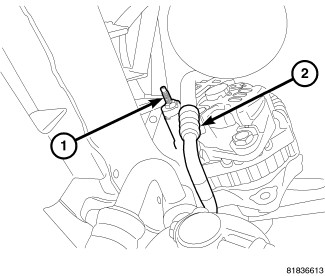

3. Make sure the battery terminal (1) is in front of the A/C line (2).





4. Loosely install the lower mounting bolt.





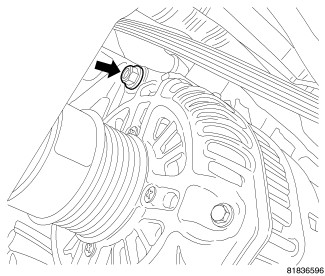

5. Loosely install the upper mounting bolt.
6. Tighten the bolts to 54 Nm (40 ft. lbs.).





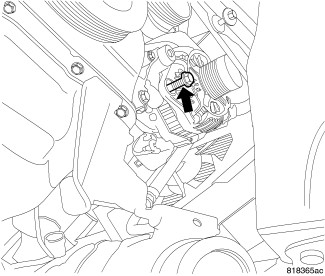

7. Install the B+ terminal nut and wire and tighten to 10 Nm (88.5 in. lbs.).





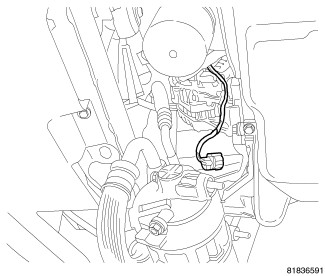

8. Plug in the field circuit to the generator.





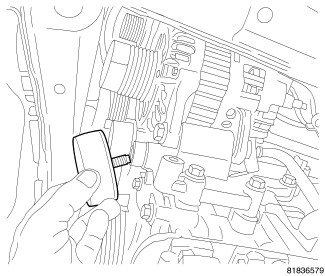

9. Install idler pulley and tighten the bolt.
10. Install the serpentine belt Serpentine Accessory Drive Belt - Installation
11. Install the splash shield.





12. Install the lower air dam.
13. Lower the vehicle.
14. Connect the negative battery cable.
