Firing Order
Firing Order
FIRING ORDER

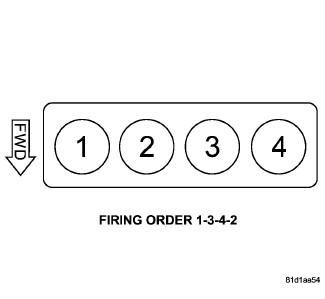

2.0, 2.4L
The
firing order
is 1-3-4-2.

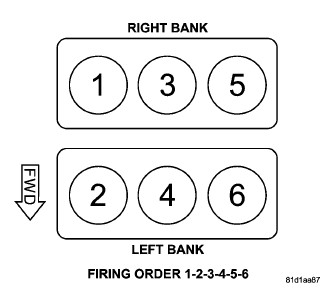

2.7, 3.5L
The
firing order
is 1-2-3-4-5-6.
