Second Row

INSTALLATION

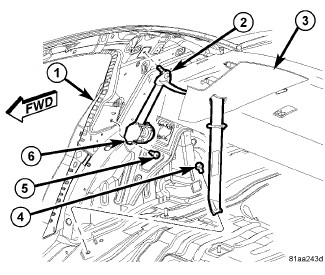

1. Place retractor and belt (6) into position in quarter panel (1).
2. Install bolt (5) and tighten bolt to 52 Nm (38.5 ft. lbs.).
3. Route seat belt webbing through upper trim panel.
4. Install bolt attaching turning loop (2) to quarter panel (1). Tighten bolt to 52 Nm (38.5 ft. lbs.).
5. Install lower quarter trim panels Quarter Trim Panel - Installation.
6. Install bolt (4) attaching seat belt anchor to floor pan. Tighten bolt to 100 Nm (74 ft. lbs.).
7. Install rear seat cushion Seat Cushion Cover - Installation.
