Rear Center

INSTALLATION






WARNING: Inspect the condition of the shoulder/lap belt. Replace the retractor if the belt is cut, frayed, torn, or damaged in any way. Failure to inspect the belts could result in improper restraint and could cause occupant serious or fatal injury.

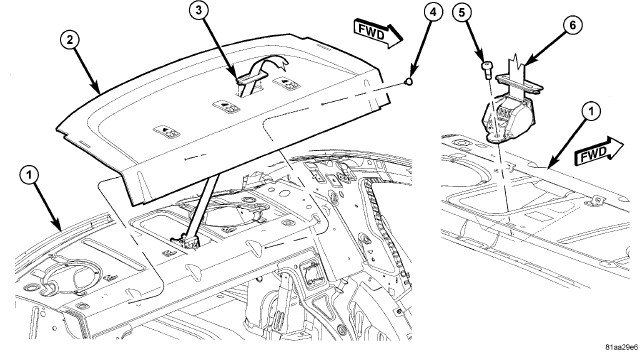

1. Route webbing and bezel through rear shelf trim panel.

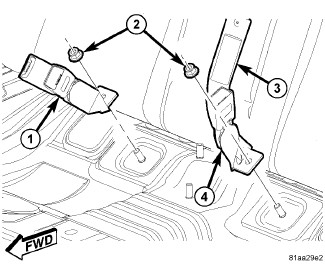

2. Install the seat belt anchor and buckle (4) onto the stud.
3. Install nut and tighten to 101 Nm (74.5 ft. lbs.).





4. Install the center rear seat belt retractor assembly on the rear shelf. Tighten the bolt to 52 Nm (38.5 ft. lbs.).
5. Install the rear shelf trim panel Rear Shelf Panel - Installation.
