Seat Belt Turning Loop Adjuster - Removal

REMOVAL

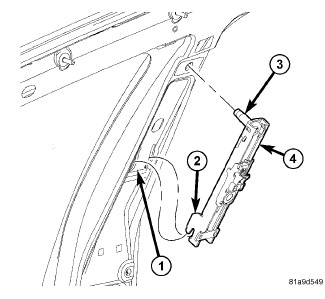

1. Remove B-pillar trim panel (4) B-Pillar Trim Panel - Removal.

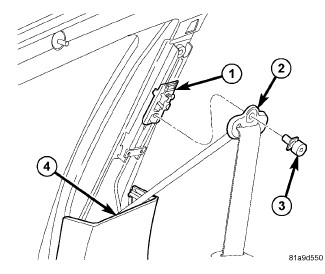

2. Remove bolt (3) attaching turning loop (2) to belt height adjuster (1).





3. Remove bolt (3) attaching seat belt height adjuster (4) to B-pillar.
4. Remove seat belt height adjuster (4) from vehicle.
