Fuel Rail - Removal

2.0, 2.4L

WARNING: Risk of injury to eyes and skin from contact with fuel, Wear protective clothing and eye protection. Risk of poisoning from inhaling and swallowing fuel. Pour fuel only into appropriately marked OSHA approved containers. Failure to comply may result in serious or fatal injury.






NOTE: Wrap shop towels around hose to catch any gasoline spillage.

1. Release the fuel system pressure.
2. Disconnect the negative battery cable.
3. Disconnect the fuel line from the fuel rail. Refer to the Quick-Connect Fittings Service and Repair.

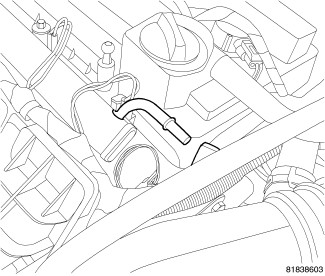

4. Fuel line removed from the fuel rail.

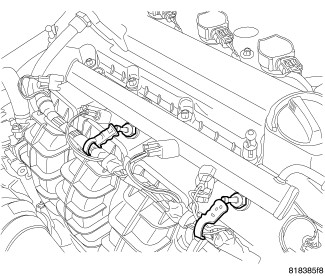

5. Unlock and disconnect the electrical connectors from the fuel injectors.

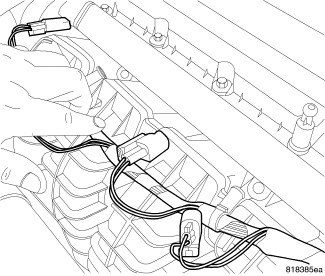

6. Remove the wiring harness from the fuel rail studs.





7. Remove the 2 bolts from the fuel rail.





8. Remove the fuel rail and injectors from the intake manifold.

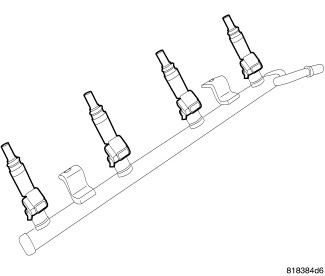

9. Fuel rail removed from intake manifold.

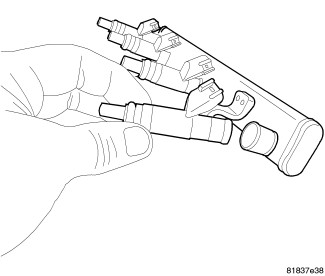

10. Remove fuel injectors from fuel rail.
