Air Cleaner Body - Installation






INSTALLATION

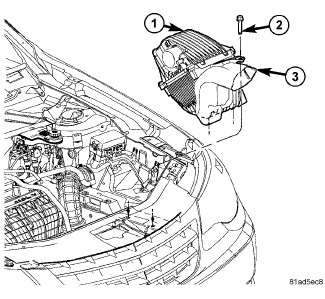

1. Position air cleaner housing (1) in place.
2. Install retaining bolt (2).
3. Install clean air hose.
