Fog Lamp Bulb - Installation

BULB

CAUTION: Always use the correct bulb size and type for replacement. An incorrect bulb size or type may overheat and cause damage to the lamp, the socket or the lamp wiring.

CAUTION: Do not contaminate the bulb glass by touching it with your fingers or by allowing it to contact other oily surfaces. Shortened bulb life will result.

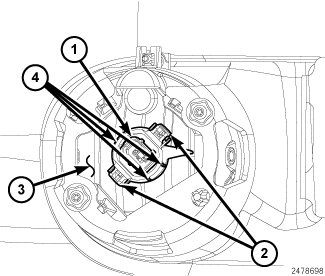

1. Reach up behind the lower edge of the front fascia to access and align the index tabs (4) of the front fog lamp bulb with the slots in the collar of the bulb opening on the back of the front fog lamp housing (3).
2. Insert the bulb into the housing until the index tabs are engaged in the slots of the collar.
3. Firmly and evenly push the bulb straight into the lamp housing until both bulb latch features (2) snap into place and are fully engaged.
4. Reconnect the headlamp and dash wire harness connector to the front fog lamp bulb connector receptacle (1).
5. Reinstall the front lower fascia closeout panel. Front Lower Fascia Closeout - Installation.
6. Reconnect the battery negative cable.
