Oil Pressure Switch - Installation

INSTALLATION






NOTE: If the oil pressure switch is removed, it must be replaced with a new switch.

CAUTION: The oil pressure switch has tapered threads, over tightening could crack the engine block.

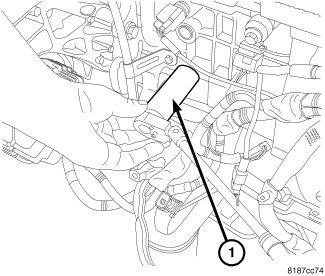

1. Install the oil pressure switch using oil pressure socket C-4597 (1) or equivalent. Tighten switch to 8 Nm (71 in. lbs.).
2. Connect the oil pressure switch electrical connector.





3. Position the A/C compressor (1) and install three mounting bolts (2). Tighten bolts to 25 Nm (18 ft. lbs.).
4. Install the accessory drive belt Serpentine Accessory Drive Belt - Installation
5. Install the splash shield to the right side frame rail Splash Shield - Installation
6. Reconnect the negative battery cable.
