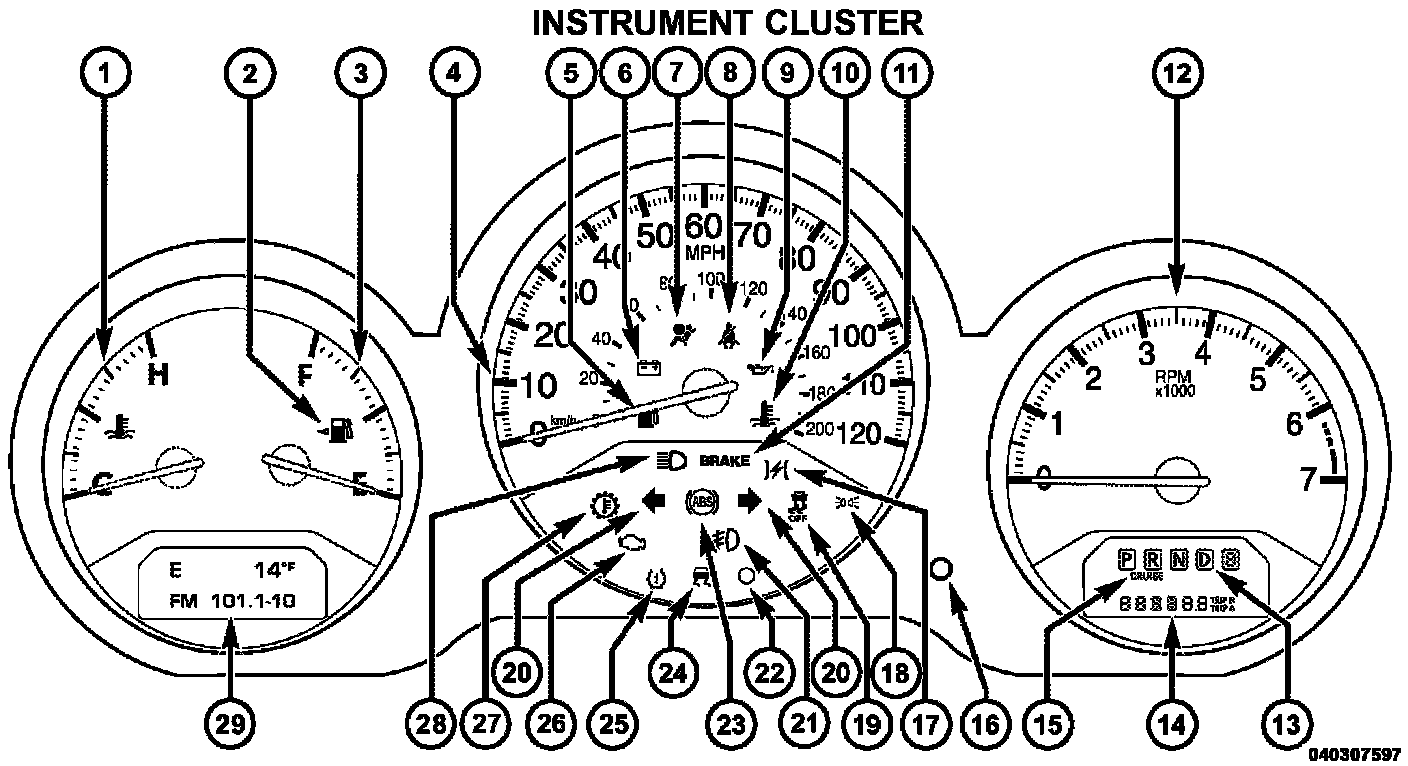

Instrument Cluster / Carrier: Locations

1. Temperature Gauge
2. Fuel Door Reminder
3. Fuel Gauge
4. Speedometer
5. Low Fuel Light
6. Charging System Light
7. Airbag Warning Light
8. Seat Belt Reminder Light
9. Oil Pressure Warning Light
10. Engine Temperature Warning Light
11. Brake Warning Light
12. Tachometer
13. Shift Lever Indicator
14. Odometer/Trip Odometer Display Area
15. Cruise Indicator - If Equipped
16. Odometer/Trip Odometer Reset Button
17. Electronic Throttle Control (ETC) Indicator Light
18. Position Light Indicator - If Equipped
19. Electronic Stability Control (ESC) OFF Indicator Light - IF Equipped
20. Turn Signal Indicators
21. Front Fog Light Indicator - If Equipped
22. Vehicle Security Light - If Equipped
23. Anti-Lock Brake (ABS) Light - If Equipped
24. Electronic Stability Control (ESC) Malfunction Indicator Light - If Equipped
25. Tire Pressure Monitoring Telltale Light
26. Malfunction Indicator Light (MIL)
27. Transmission Temperature Indicator - If Equipped
28. High Beam Indicator
29. Electronic Vehicle Information Center (EVIC) Display - If Equipped
