Blower Motor - Removal

REMOVAL

NOTE: The blower motor is located on the bottom of the passenger side of the HVAC housing. The blower motor can be removed from the vehicle without having to remove the HVAC housing.






NOTE: LHD model shown. RHD model similar.

1. Disconnect and isolate the negative battery cable.
2. If equipped, remove the silencer from below the passenger side of the instrument panel.

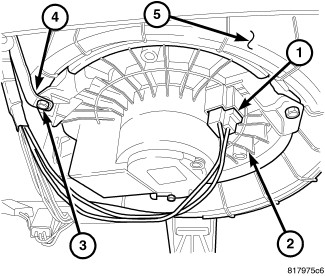

3. From underneath the instrument panel, disengage the connector lock and disconnect the instrument panel wire harness connector (1) from the blower motor (2).
4. Remove the three screws (3) that secure the blower motor and the wire lead bracket (4) (if equipped) to the bottom of the HVAC housing (5) and remove the blower motor.
