Oil Pressure Switch - Removal

REMOVAL





1. Disconnect and isolate the negative battery cable.
2. Raise and support the vehicle Maintenance
3. Remove the splash shield from the right side frame rail Splash Shield - Removal
4. Remove the accessory drive belt Serpentine Accessory Drive Belt - Removal
5. Remove the three bolts (2) and reposition the A/C compressor (1).





6. Disconnect the oil pressure switch electrical connector.

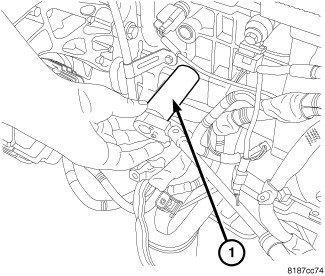

7. Remove the oil pressure switch using oil pressure socket C-4597 (1) or equivalent.
