Front Crankshaft Oil Seal - Installation

INSTALLATION





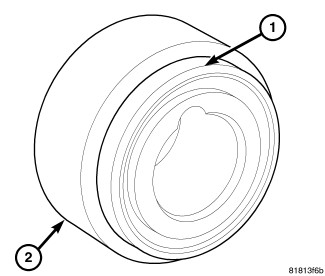

1. Place seal (1) onto Seal installer 9506 (2) with seal spring towards the inside of engine.

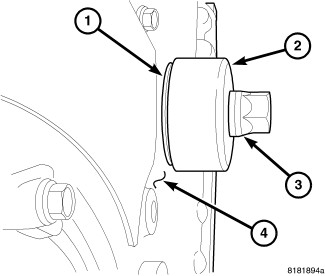

2. Install new seal (1) by using Seal installer 9506 (2) and crankshaft damper bolt (3).





3. Press seal into front cover until Seal Installer 9506 (1) seats against timing chain cover (3).
4. Remove seal installer 9506 (1).





5. Install crankshaft vibration damper.
6. Oil the bolt threads and between the bolt head and washer.
7. Install damper retaining bolt and damper holder 9707 (1). Tighten bolt to 210 Nm (155 ft. lbs.).
