Engine Oil Cooler - Installation

INSTALLATION





1. Replace oil cooler seal (1).

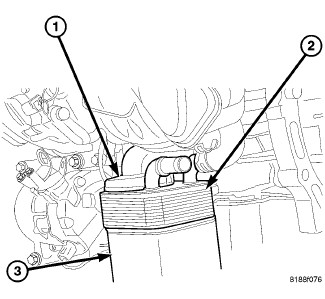

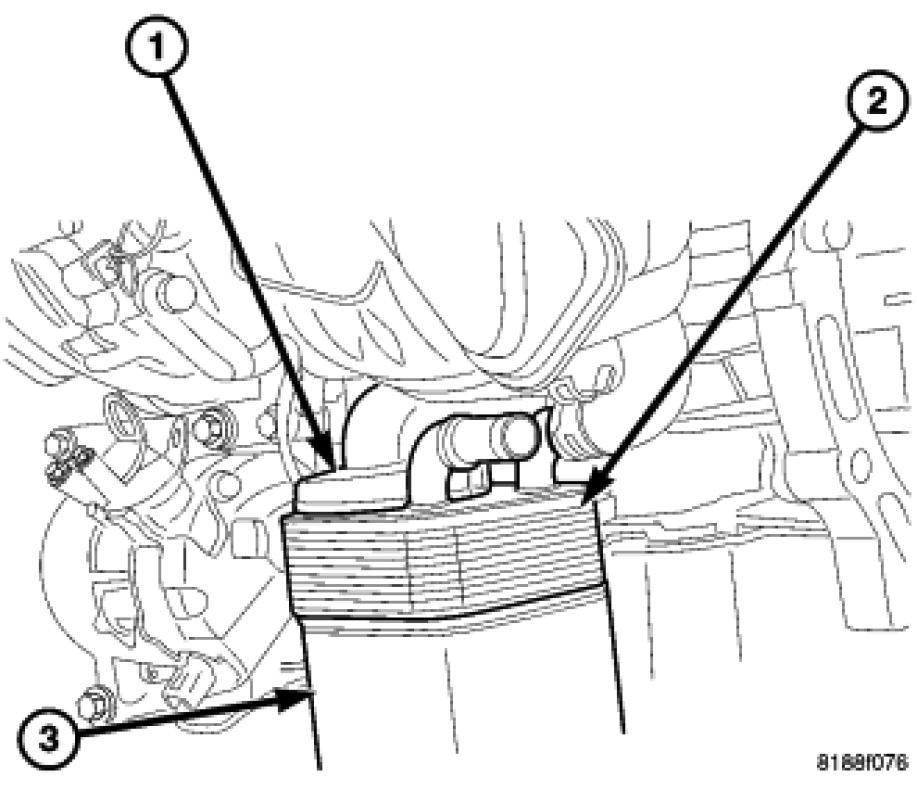

2. Lubricate seal and position oil cooler to oil filter adapter, aligning notch to tab.
3. Install oil cooler connector bolt (2). Tighten connector bolt to 49 Nm (36 ft. lbs.).





4. Install oil filter (3).
5. Connect oil cooler coolant hose.
6. Lower vehicle.
7. Fill cooling system Service and Repair.
