Left

REMOVAL





1. Remove air cleaner assembly (1).
2. Disconnect negative cable from battery.
3. Remove PCM.
4. Remove PCM mounting bracket.





5. Support transaxle with a suitable jack.

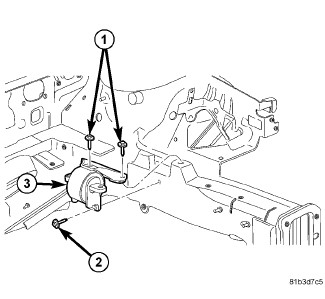

6. Remove mount to transaxle bolts (2).
7. Remove left mount to frame rail fasteners (4).





8. Lower transaxle to gain access to mount to frame rail fastener (2).
9. Remove mount isolator (3).
