Checking Crankshaft End Play

MEASURING CRANKSHAFT END PLAY

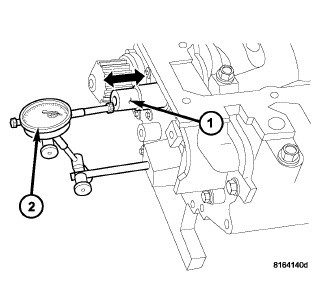

1. Mount a dial indicator (2) to front of engine with the locating probe on nose of crankshaft (1).
2. Move crankshaft all the way to the rear of its travel.
3. Zero the dial indicator.
4. Move crankshaft all the way to the front and read the dial indicator. Engine Specifications for end play specification.
