Engine Cooling Radiator - Installation

RADIATOR










1. Position the A/C condenser onto the radiator.
2. Slide the radiator/condenser assembly into position and seat the radiator assembly lower rubber isolators in the mount holes.
3. Install the mounting brackets to the upper core support using two torx screws.
4. Install A/C lines to condenser/cooler.

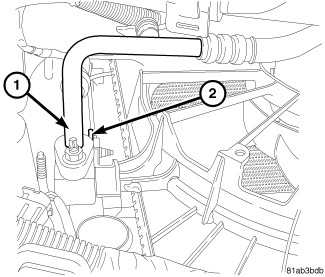

5. Install transmission oil cooler tubes support bracket to radiator (2). Tighten mounting screws to 5 Nm (45 in. lbs.).
6. Position radiator cooling fans on radiator.

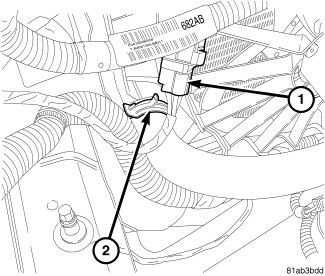

7. Connect cooling fan electrical connector (1).
8. Install upper and lower radiator hoses at radiator.
9. Install the grille.Grille - Installation
10. Install front bottom splash shield (if equipped).
11. Install under belly pan (if equipped).
12. Fill cooling system Service and Repair.
13. Charge A/C systemRefrigerant System Charge.
14. Install air box assembly.Air Cleaner Body - Installation.
15. Connect negative battery cable.
16. Install engine cover.
