Cooling System - Description

DESCRIPTION

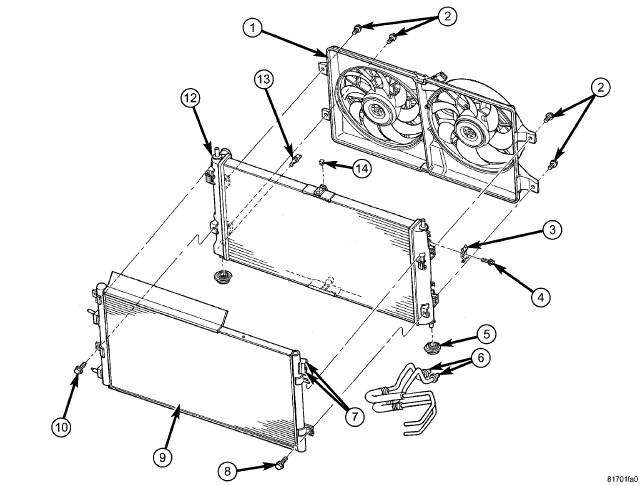

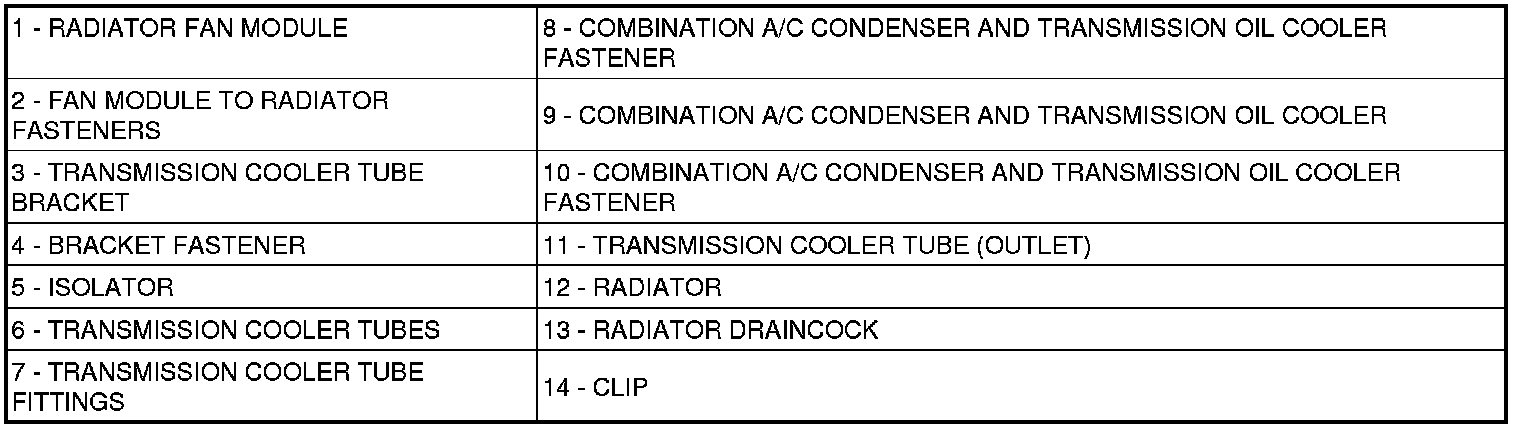

Cooling Module - Exploded View





The cooling system consists of an engine cooling module, thermostat, non-pressure coolant recovery container (2.0L/2.4L) or pressurized coolant recovery container (2.7L/3.5L/2.0L Diesel), coolant, hoses, and a water pump to circulate the coolant. The engine cooling module consists of a radiator, electric fans, shroud, transmission oil cooler, and air conditioning condenser.
